Yagi WiFi 5.8Ghz Antenna - 16dBi Radome - H:19° - V:19° - Outdoor - Directional - N-Female Cable

UPC: 741360888920

Yagi 5.8Ghz Antenna TY-58-16-27 is Radome Enclosed Yagi Antenna features high gain and a 19° beam width. It is ideally suited for directional and multipoint Wifi and wireless LAN applications and other systems operating in the 5.8GHz band. (5GHz range)

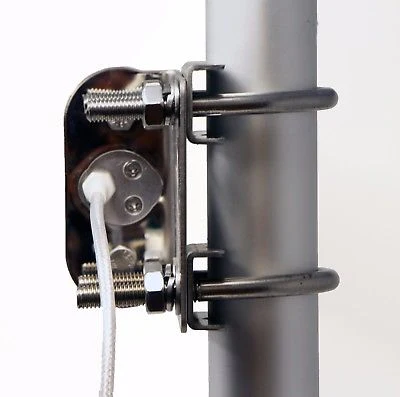

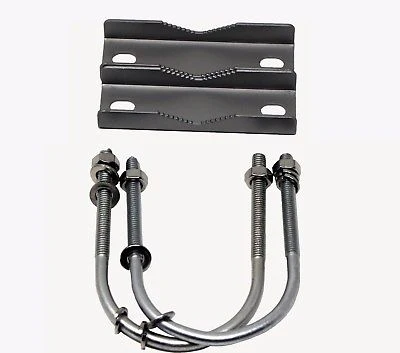

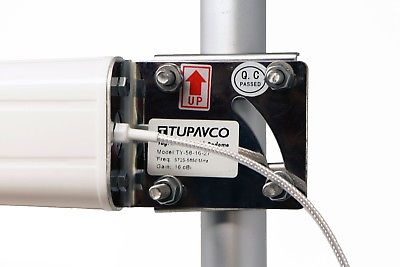

5.8GHz Wifi Yagi Antenna TY-58-16-27 is enclosed within a UV-stable ABS radome for all-weather operation. Included with antenna is a 60° tilt and swivel mast mount kit. This allows the installer to make accurate alignment over wide range of pointing angles.

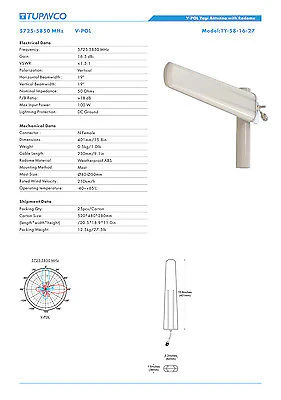

Electrical Data

Frequency: 5725-5850 MHZ
Gain: 16.5 dBi
VSWR: <1.5:1
Polarization: Vertical
Horizontal Beamwidth: 19°
Vertical Beamwidth: 19°
Nominal Impedance: 50 Ohms
F/B Ratio: >18 dB
Max Input Power: 100 W
Lightning Protection: DC Ground

Mechanical Data
Connector: N-Female
Dimensions: 15.8in
Weight: 1.2lb
Cable Lenght: 9.1in
Radome Material: Weatherproof ABS
Mounting Method: Mast
Mast Size: 40-50mm
Rated Wind Velocity: 210km/h
Operating temperature: -40~+65C
