Panel Antenna 2.4GHz WiFi 20dBi Wireless Outdoor 18° Directional N (f) High Gain Range
UPC: 741360888111
Model Number: TP511
WiFi Panel Antenna is the most popular type of directional antenna in use today. The 20dBi 2.4Ghz Outdoor Panel Antenna offers 18 deg both Vertical and Horizontal Beamwidth. This WiFi Antenna comes with an N-Female connector. N-Female is an industry standard connector. It has threads on the outside and a center socket.
This antenna operates without the need for a grounding in most cases. However, you can ground antenna via the outer conductor of the connector and the cable, or through the mounting hardware. We do, however, recommend you install a lightning surge protector between the Panel antenna and a device to prevent a lightning strike to the antenna from damaging your device and equipment.
2.4 GHz 18° H-POL or V-POL, 2.4GHz Panel Antenna
Wireless Panel Antenna TP511 in most cases can not be attached directly to the device (wifi router, signal booster, etc.) without some type of cable converter/adapter This Antenna has N-Female connector so it will need the cable/converter from N-Female type to [your device connector type], usually some pigtail coax RP-SMA cable connector. Also, you can put amp of some kind or signal booster between device and antenna.

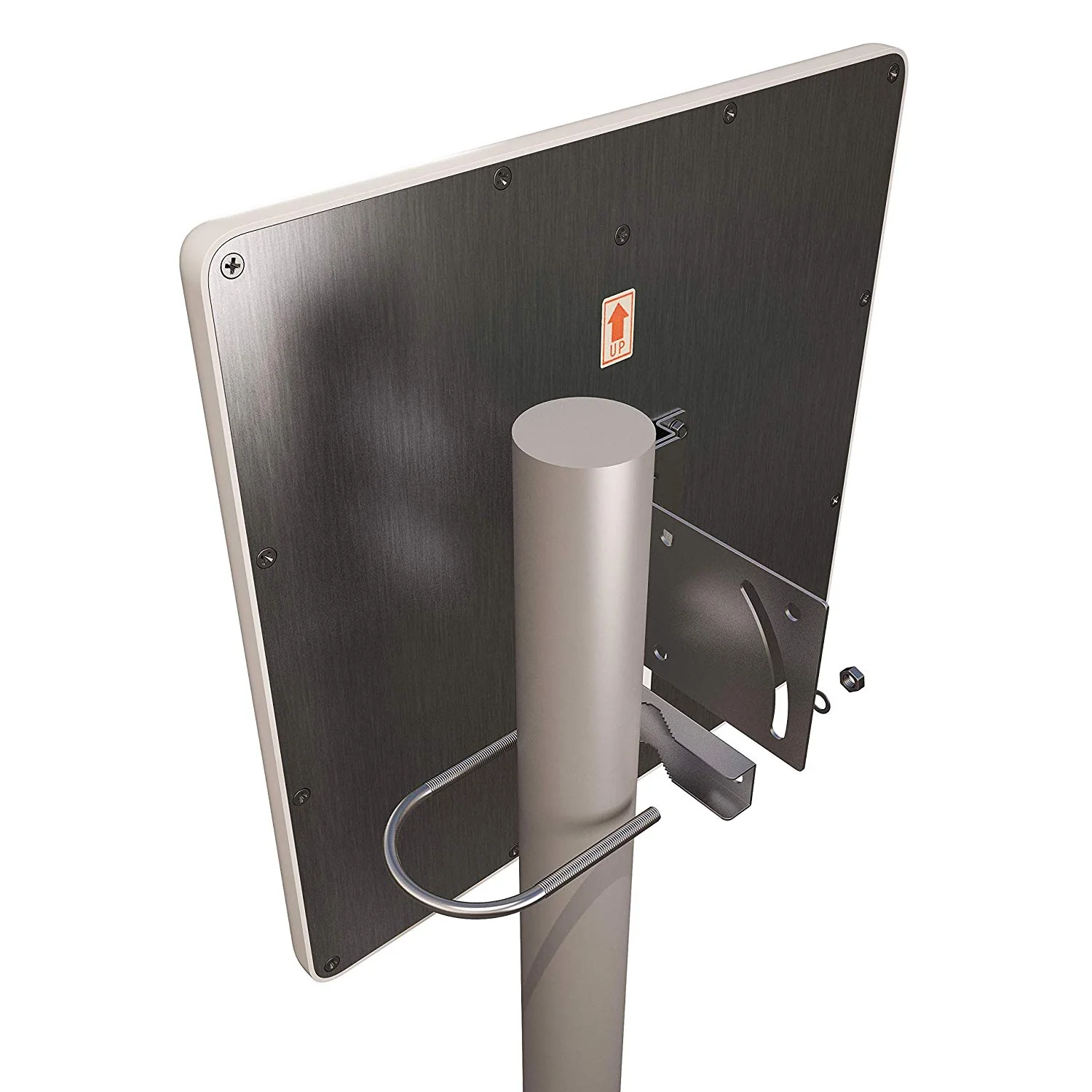

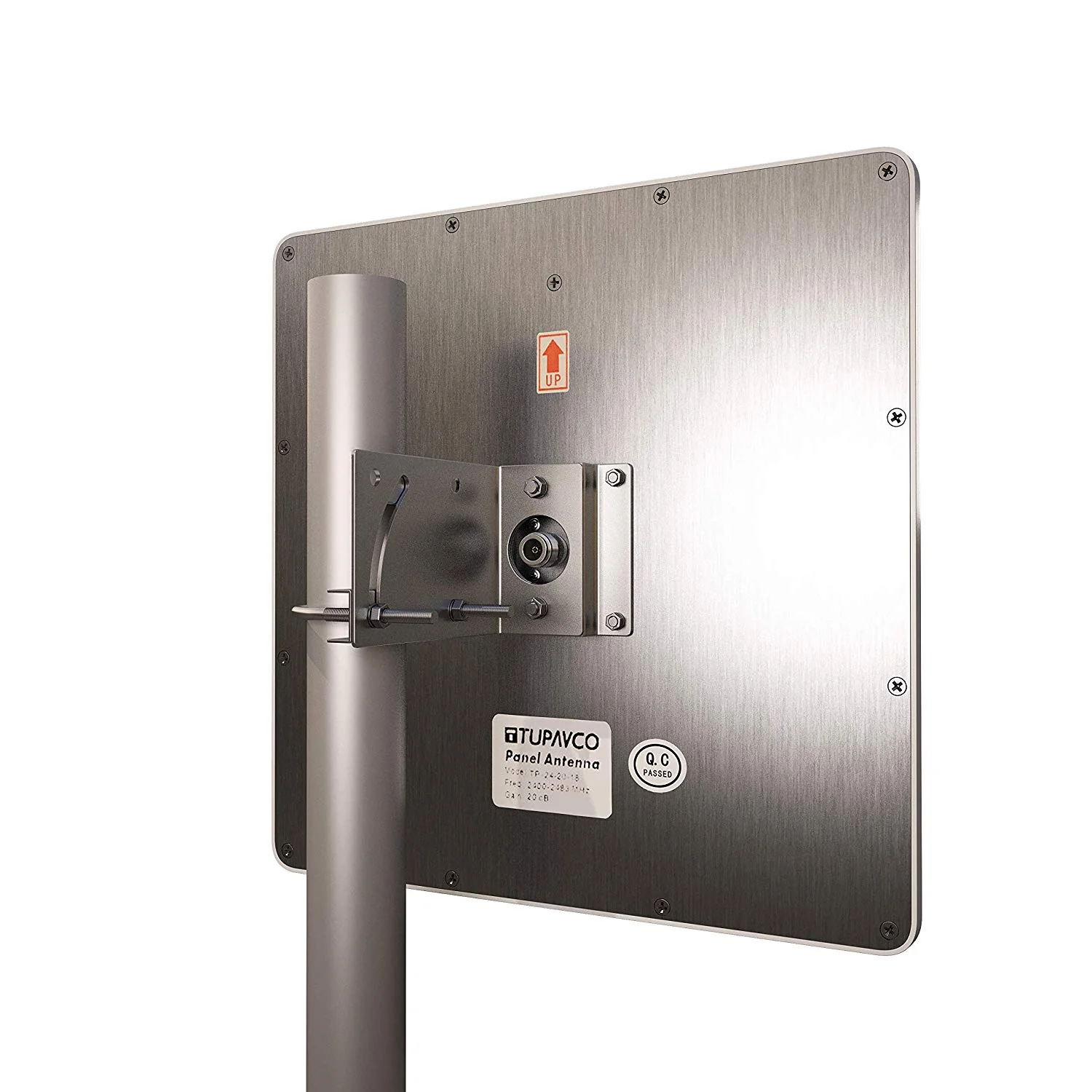

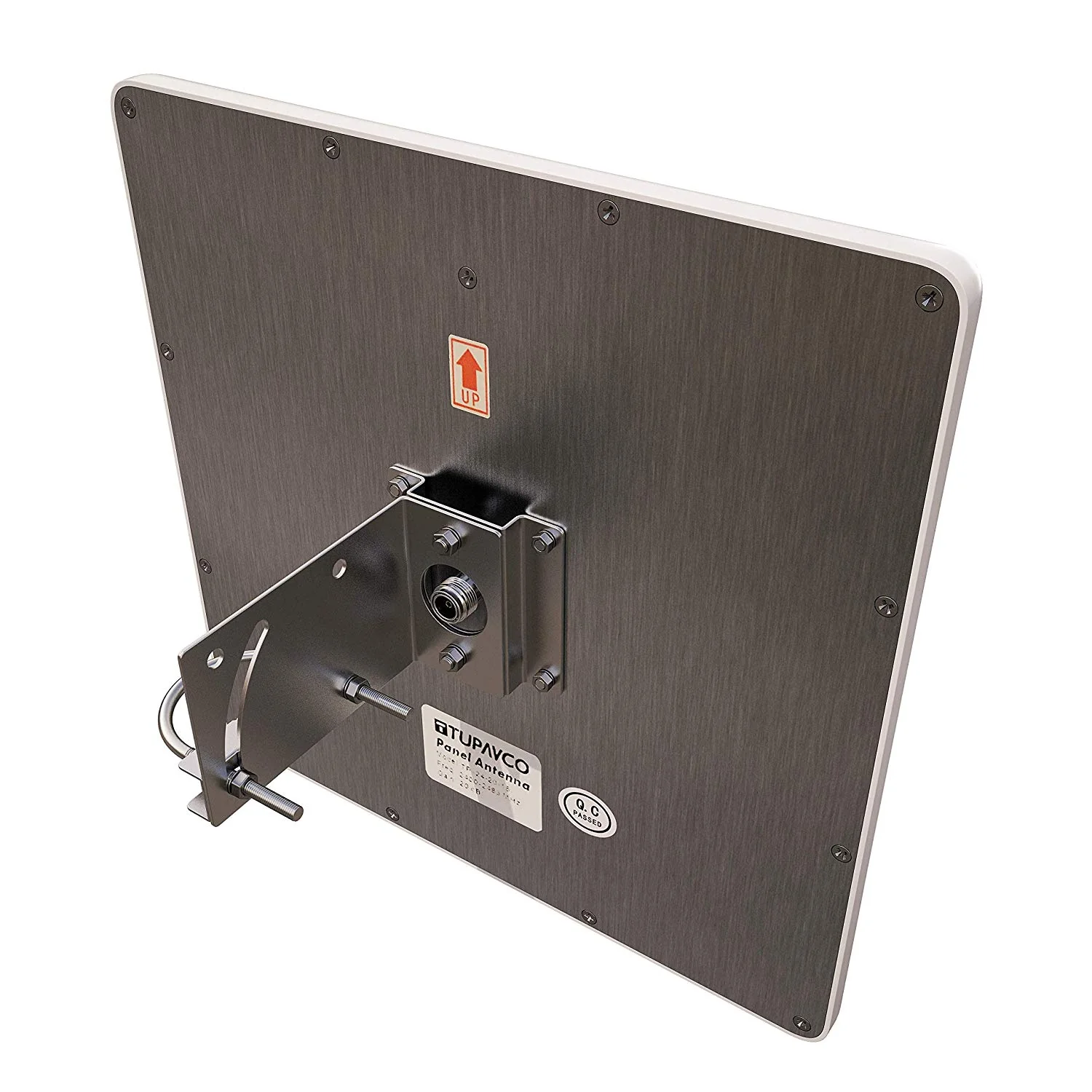

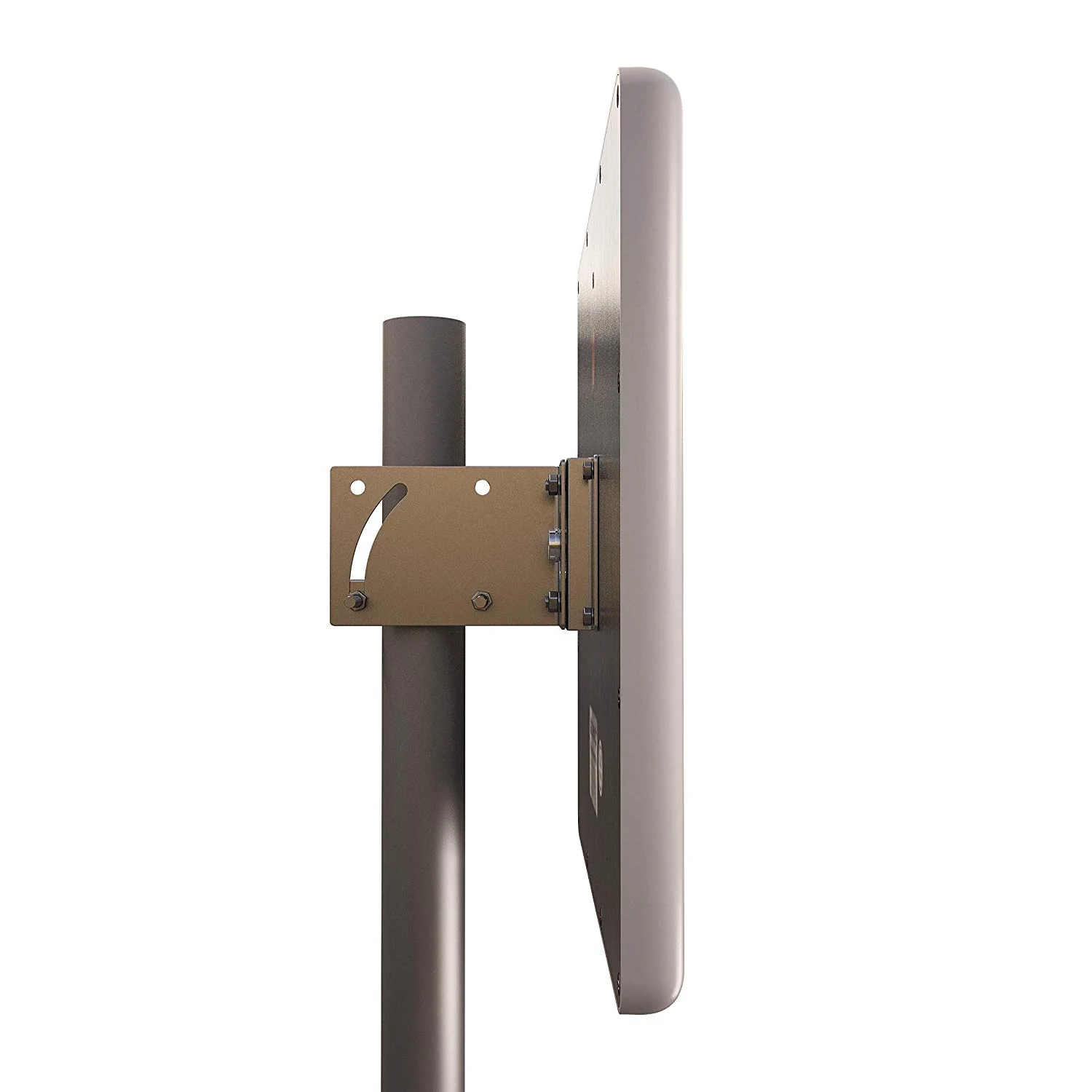

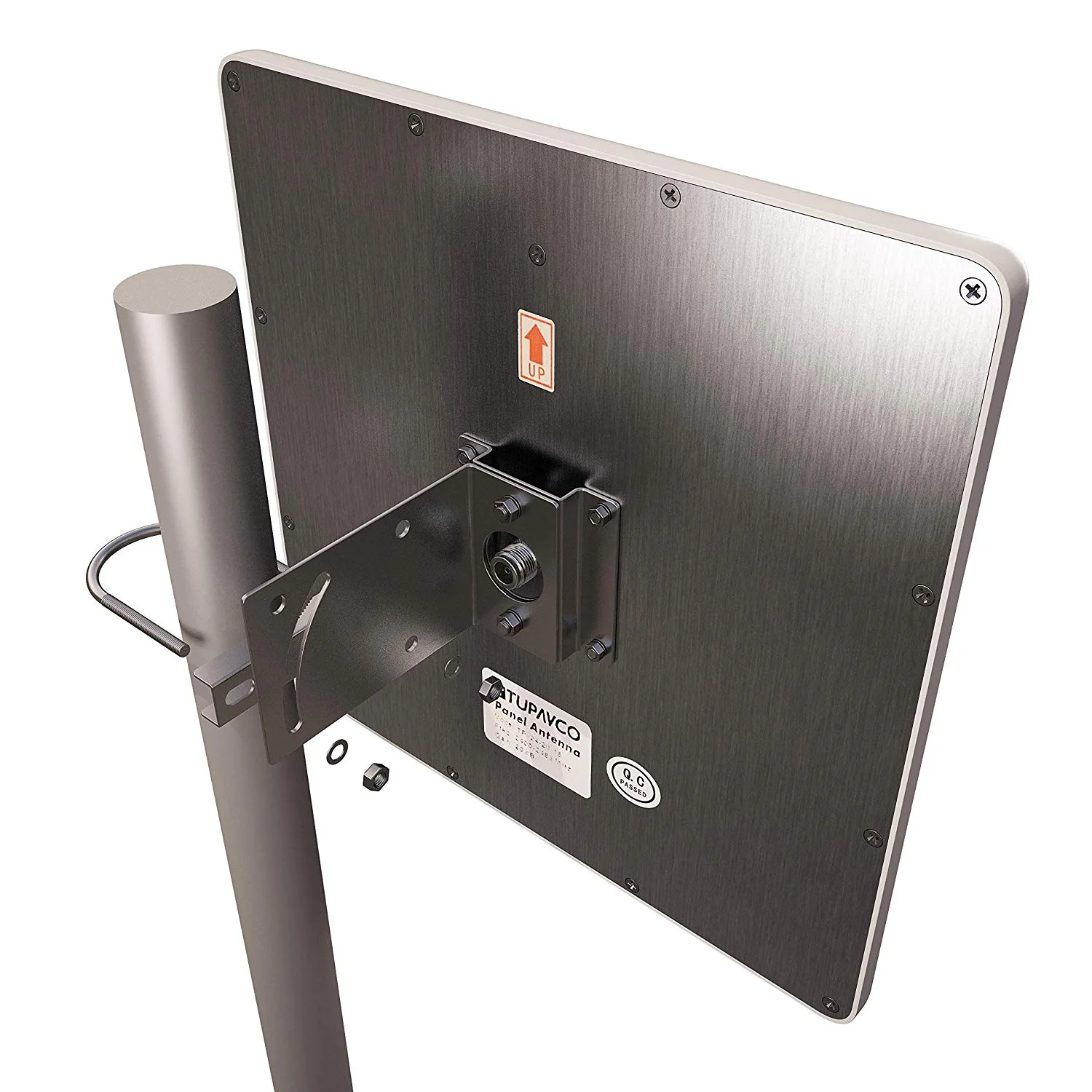

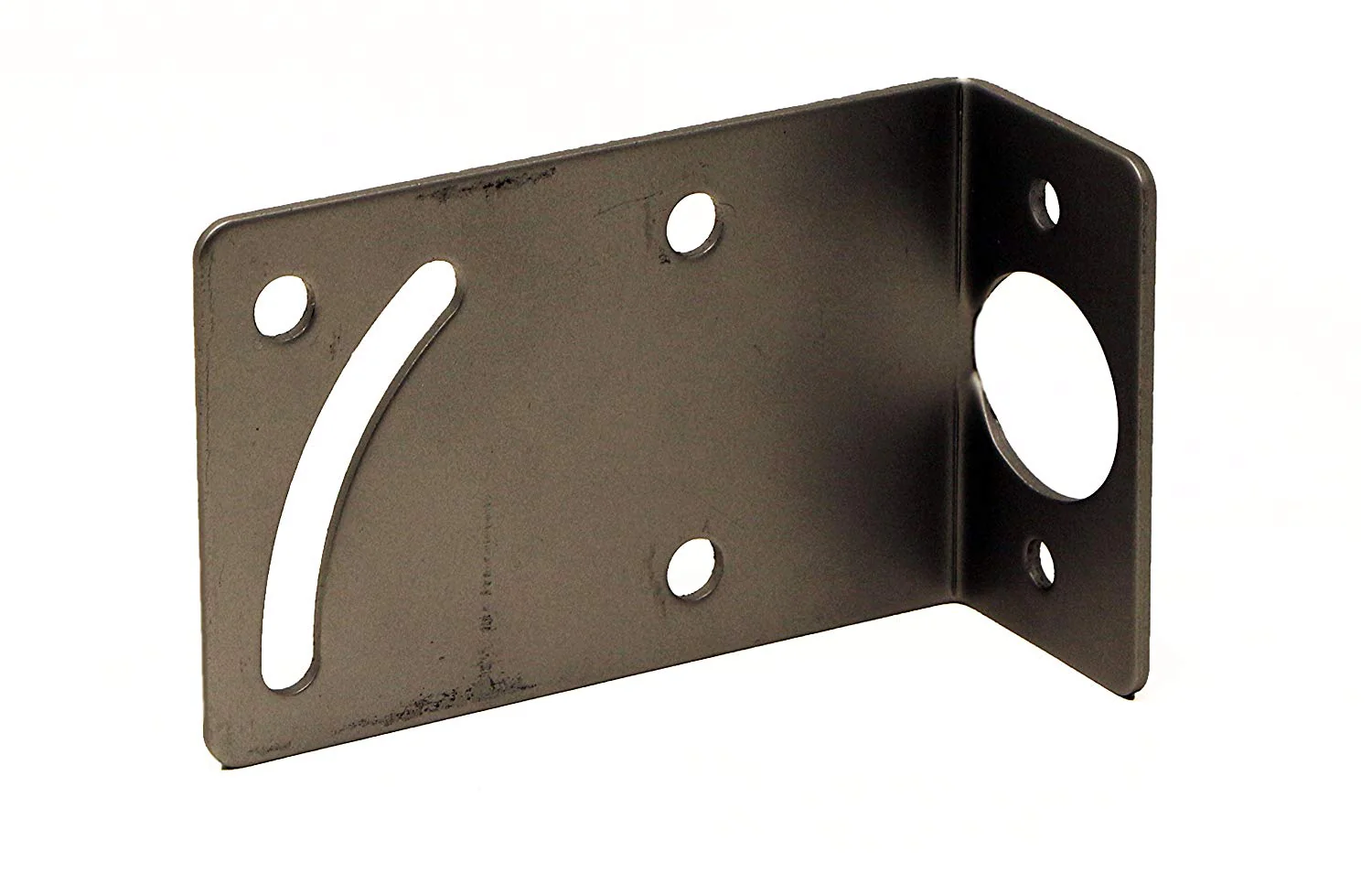

The antenna does not come with mast pole mount; it comes with two U-bolts which can be used with the attached plate for pole mounting. It allows horizontal or vertical polarization.
The Panel antenna is used to direct the WiFi beam. It will increase the signal/reception in the direction it is pointing.

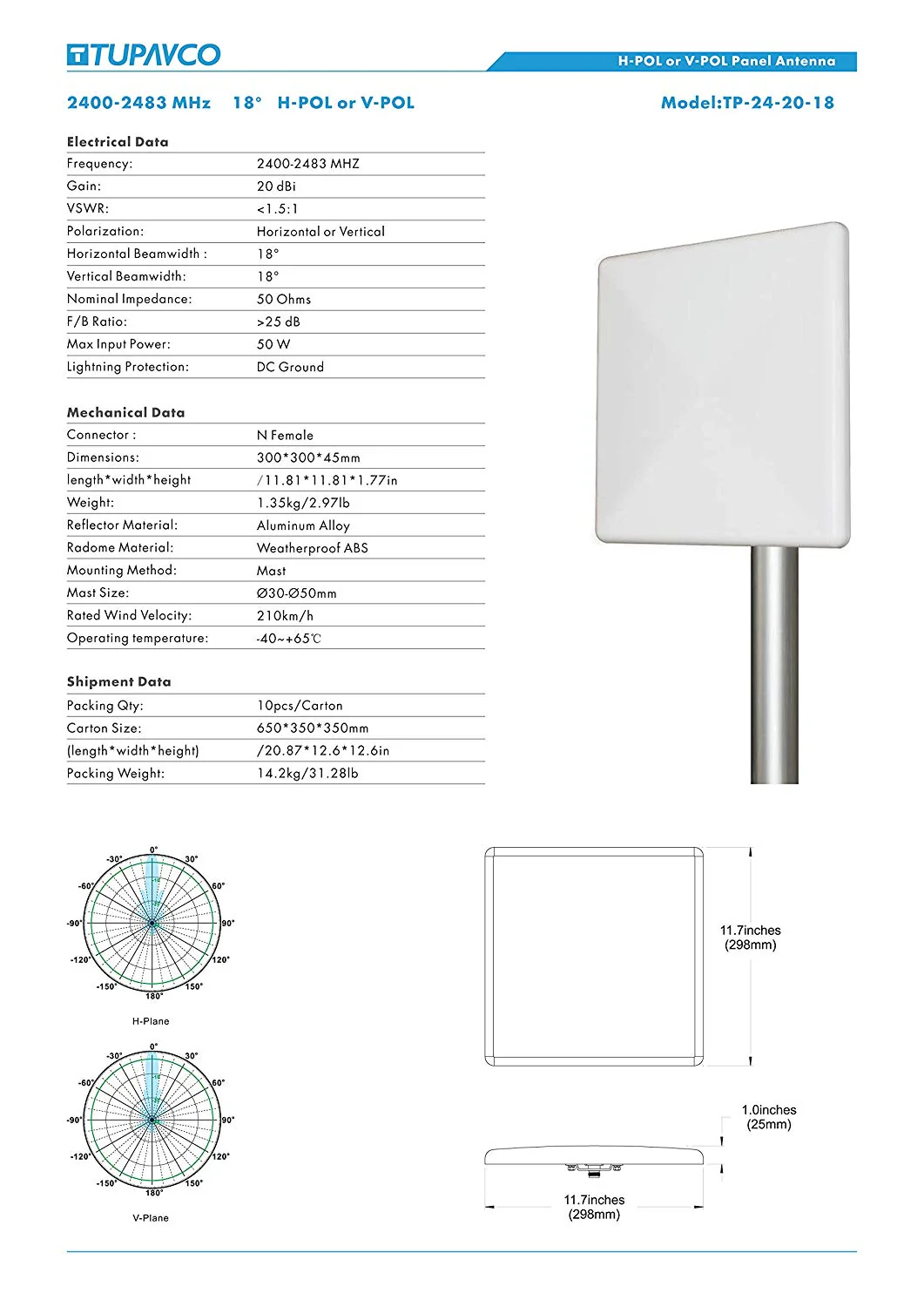

Electrical Data:
Frequency: 2400-2483 MHz
Gain: 20 dBi
VSWR: <1.5:1
Polarization: Horizontal or Vertical
Horizontal Beamwidth: 18°
Vertical Beamwidth: 18°
Nominal Impedance: 50 Ohms
F/B Ratio: >25 dB
Max Input Power: 50 W
Lightning Protection: DC Ground
Mechanical Data:
Connector: N Female
Dimensions (length*width*height): 11.81*11.81*1.77in
Weight: 2.97 lb
Reflector Material: Aluminum Alloy
Radome Material: Weatherproof ABS
Mounting Method: Mast
Mast Size: Ø30-Ø50mm
Rated Wind Velocity: 210km/h
Operating temperature: -40~+65C
Original: $52.98
-70%$52.98
$15.89More Images
